A Comprehensive Guide to Safe Powder Handling

Regardless of your industry, there are four main hazards to processing powder: dust explosions, worker safety, respiratory health risks, and product contamination.



Dust Explosions

Dust explosions are the most catastrophic risk in powder handling. According to the latest incident report, the United States has an average of 28 dust explosions, 25 injuries, and 2 fatalities per year.

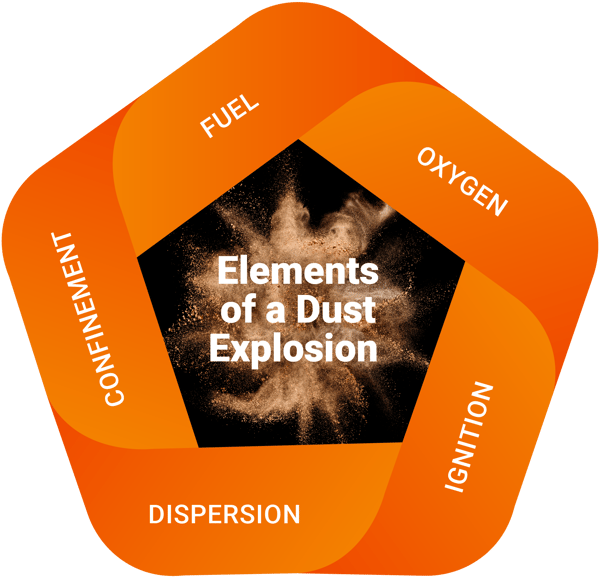

Dust explosions occur when five conditions align, creating what's known as the dust explosion pentagon:

• Fuel: Combustible dust like grain, wood, metal, sugar, etc.
• Ignition: Heat, sparks, static electricity, hot surfaces, or open flames
• Oxygen: Present in normal air concentrations
• Dispersion: Dust particles suspended in air at the right concentration
• Confinement: An enclosed or partially enclosed space that allows pressure to build





When these five elements all happen at once, an explosion occurs. Primary explosions often trigger more severe secondary explosions as the initial blast disturbs accumulated dust. These secondary explosions spread rapidly through connected spaces like ductwork, conveyor systems, and processing equipment.



Case Study: A recent example of the devastating consequences of dust explosions happened in 2023 in United States. A grain processing facility suffered a catastrophic explosion. When accumulated corn dust ignited in a bucket elevator, three workers were hospitalized with severe burns. The grain elevator was destroyed.



Federal investigators discovered that the facility had failed to inspect or test the critical explosion suppression systems since late 2016. OSHA imposed more than $300,000 in fines for willful safety violations. Yet, just five months later, the facility experienced another explosion that injured eight more workers.





To evaluate your dust explosion risk, consider these key indicators:

• Visible dust accumulation on horizontal surfaces
• Processes that generate fine powders
• History of flash fires or small ignition events
• Occasional dust clouds visible during operations



Worker Safety

One of the most common hazards in manufacturing facilities is slips and falls caused by dust accumulation on plant floors. In 2023, workplace falls resulted in over 8 million trips to the emergency room, making them the leading cause of ER visits. What’s more, 65% of fall-related injuries are from same-level walking surfaces. This is a result of the failure to follow Good Housekeeping Practices.

Another serious hazard is amputation injuries when fingers, hands, and arms become caught in running equipment such as conveyor belts, rotating machinery, or automated production lines. Recent OSHA data reveals that employers reported 27 workers a day, on average, suffering among the most severe work injuries.

These accidents often occur during routine maintenance, cleaning operations, or when workers attempt to clear jams without following proper lockout/tagout procedures. The consequences can be devastating, resulting in permanent disability.



Respiratory Health

Beyond catastrophic events, daily exposure to powders presents chronic health risks to workers. Inhalation of fine powders can lead to occupational asthma, allergic reactions, chronic obstructive pulmonary disease (COPD), pneumoconiosis, and other serious conditions. The severity depends on particle size, composition, concentration, and exposure duration. To help guide manufacturers, OSHA has set Permissible Exposure Limits (PEL) that outline thresholds for hundreds of substances.



Action step: Measure your indoor air quality against the PELs for substances in your facility.



Product Contamination

Product contamination represents another critical safety concern in powder processing. For food, pharmaceutical, and other sensitive industries, contamination can lead to serious health risks for the end user — not to mention recalls, regulatory fines, and significant damage to your business.



Cross-contamination often happens when facilities use shared equipment without adequate cleaning between production runs. Microbial growth is also a concern which can result from product build-up at connection points between equipment.





Many industries deal with powder — from batteries to pet food. While there are universal risks involved, there are also unique risks depending on the kind of powders you’re working with. Understanding these specific challenges is essential for effective risk management.



Super-Fine Dust

Super-fine powders are extremely difficult to contain, leading to widespread dust accumulation. These powders, such as the kind inside rechargeable lithium batteries, remain suspended in air longer and penetrate deeper into the lungs, causing more serious issues. Fine powders also represent the "sweet spot" for explosion hazards because they:

• Stay suspended in the air long enough to form combustible clouds
• Have optimal surface area-to-mass ratios for rapid combustion
• Are large enough to burn efficiently but small enough to remain airborne



High-Speed Processing

High-speed mixing, blending, and conveying generate extra friction and static electricity — a dangerous ignition source for dust explosions.



Many combustible dusts ignite at relatively low temperatures, making heat buildup from fast-moving equipment a serious concern when combined with airborne powder.



Static electricity also becomes a bigger issue at high processing speeds. Fast-moving powders generate substantial electrical charges. If left unchecked, a single discharge can ignite combustible dust clouds, particularly with non-conductive materials like plastics and certain powders that readily accumulate static charges.



Additionally, high-speed rotating equipment poses significant physical dangers to maintenance workers who face risks of entanglement, crushing injuries, and contact with hot surfaces during repairs and inspections.



Hazardous Chemicals

Chemical powders often combine multiple dangers that go beyond simple dust explosion risks. Powders used in pharmaceuticals can harm workers through tiny exposures — even nanogram amounts absorbed through skin contact or breathing can cause serious health effects. These materials need special containment systems like sealed isolators and strict cleaning procedures to prevent workers from exposure and cross-contamination between different drugs.



Food processing faces major risks with allergen powders such as milk proteins, peanut flour, and egg powder. Even trace amounts can trigger severe reactions in sensitive people, making contamination control critical for both worker and consumer safety. This requires separate production lines, thorough cleaning between batches, and often complete physical separation of allergen areas.



Industrial chemical powders combine toxic, corrosive, and explosive properties. Heavy metal powders like lead oxide require medical monitoring and special waste disposal. Corrosive powders like sodium hydroxide cause severe burns on contact while also creating fire risks when mixed with organic materials. These multi-hazard powders need integrated safety systems that address toxicity, chemical reactions, and fire dangers through engineered controls, worker training, and emergency plans that go far beyond standard dust control measures.



Given all the risks associated with powder handling, there are many regulatory bodies that aim to make to make it safer for workers and consumers.



OSHA (Occupational Safety and Health Administration)

OSHA compliance involves regular workplace inspections, proper hazard communication, employee training, and documentation of safety processes. Violations can result in significant fines and operational restrictions.



NFPA (National Fire Protection Association)

The NFPA provides critical standards for fire and explosion prevention. These standards provide specific requirements for dust hazard analysis, equipment selection, and explosion protection measures. While not legally binding in themselves, NFPA standards are often incorporated into local building codes and referenced in OSHA citations.



Industry-Specific Regulations

Beyond general safety regulations, many industries face additional requirements:

• FDA Food Safety Modernization Act (FSMA) in food processing
• FDA Current Good Manufacturing Practices (cGMP) in pharmaceuticals
• EPA Risk Management Plan Rule in chemical manufacturing
• USDA requirements in agricultural facilities

Action step: For a detailed breakdown of key regulations, what they mean for you, and how to apply them in your facility, check out our Guide to Compliance in Manufacturing.



Specialized equipment plays a crucial role in mitigating powder handling risks. The right equipment choices not only improve safety but also reduce long-term costs.



Key Safety Feature: Connectors

When it comes to improving the safety of your facility, sophisticated dust collection and explosion suppression systems have their place. But it's important to contain dust at the source as much as possible.

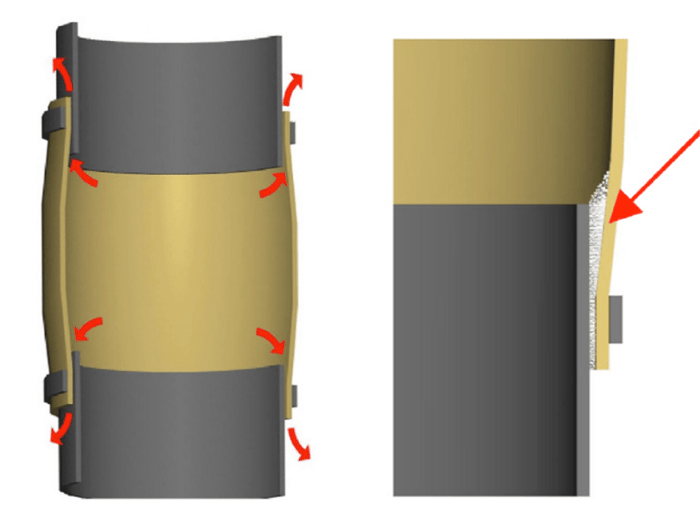

Connectors are potential weak points where dust can escape, accumulate, or ignite.  However, when properly managed, the right connectors can contain powder before it becomes a problem.



BFM® fittings: Containing Dust at the Source

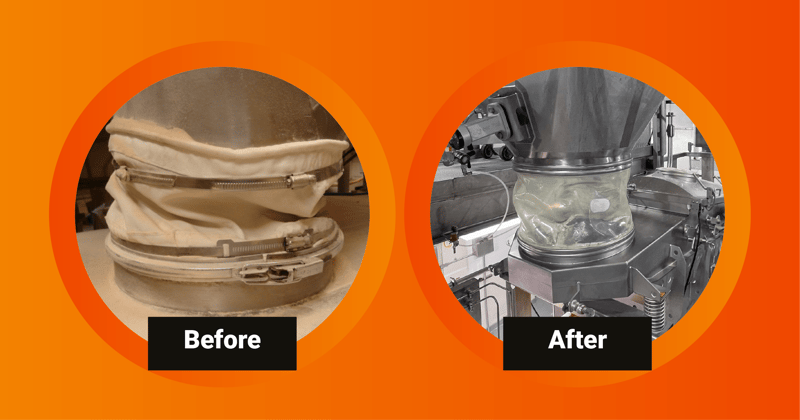

BFM® fittings help solve issues created by traditional sleeve and clamp connectors. By reducing dust leakage, static buildup, and contamination potential, they create safer, cleaner, and more efficient processing facilities.





Explosion Resistant: The 100% seal of BFM® fittings prevents dust from escaping into the atmosphere, greatly reducing the risk of primary and secondary dust explosions. In the event of an explosion, the BFM® Kevlar Cover is designed to contain significant blasts. This cover can add another layer of protection in dangerous, overpressure environments.





Static Dissipating: Use of static dissipating connectors along with adequate grounding procedures reduce the occurrence of static electric spark discharges as a potential ignition source.

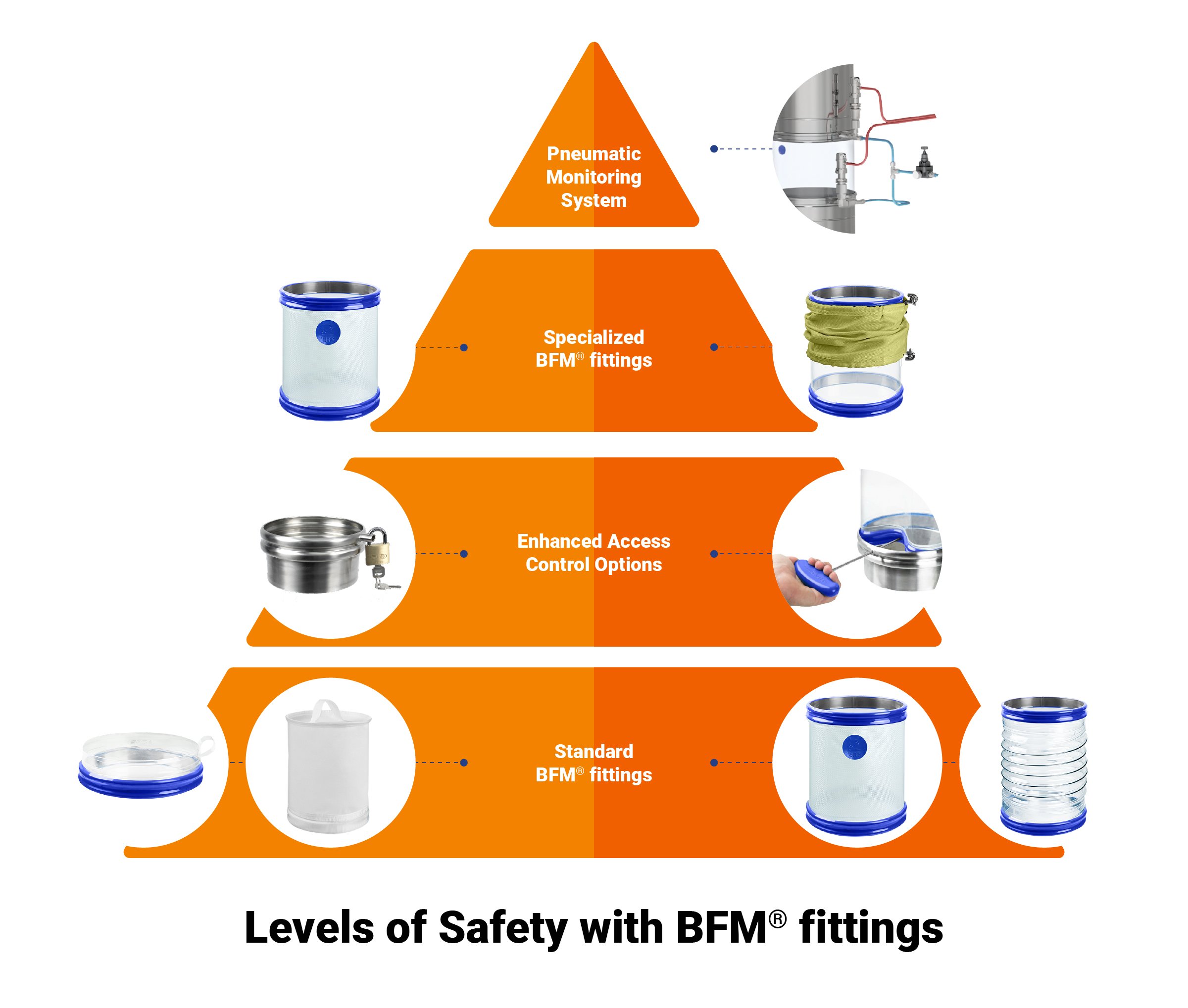

Tool-Free: No tools are required for installing standard BFM® connectors, allowing for quick access to machinery in safe zones. BFM® also offers extra layers of safety to prevent injuries when replacing connectors close to moving equipment, such as:

• Tool Release that requires workers to use a special tool to remove connectors
• Tool Release Smiley Face that prevents workers from using screwdrivers or other items to access connectors
• Tool Release Lock-out that requires workers to use a key to access the connector
• Pneumatic Monitoring System that notifies workers when connectors are in place and properly sealed to prevent injury

Safety Certified: BFM® fitting systems meet numerous regulatory requirements, including:

• ATEX certification for explosive atmospheres
• FDA compliance for food contact
• 3-A Sanitary Standards for dairy applications
• USDA for meat and poultry facilities





Although equipment and regulations go a long way, they cannot ensure safety on their own. A robust safety culture forms the foundation of effective powder handling.





Leadership Commitment

Safety culture starts at the top. Leaders must allocate resources for safety improvements and include safety discussions in regular management meetings. They should recognize safety achievements and establish accountability for safety performance at all levels.



When leadership treats safety as a core value and backs it with funding for safety initiatives, employees become more engaged in the program — helping build a strong culture of safety.



Employee Engagement Strategies

Engaged employees become safety advocates within the organization. Open communication channels for reporting concerns, recognition of safe behaviors, regular training, and competency verification all contribute to engagement.



By treating employees as safety partners rather than simply rule-followers, organizations tap into valuable frontline knowledge and create a culture where everyone feels responsible for maintaining a safe workplace.



Measuring Safety Performance

To evaluate safety program effectiveness, track these key performance indicators:

• Near-miss reporting
• Equipment compliance rates
• Safety audit scores
• Training completion percentages
• Employee safety perception surveys

This systematic approach allows organizations to identify emerging risks before incidents occur and to constantly refine their safety systems based on operational experience and changing conditions.



Emergency Response Planning

Despite the best prevention efforts, facilities must prepare for emergencies. Develop clear response protocols for dust incidents, establish evacuation procedures, conduct regular drills, and ensure proper first aid and emergency equipment are available. Train employees on emergency shutdown procedures and maintain communication channels for crisis situations.



Safe powder handling requires a comprehensive approach with proper equipment, regulatory compliance, and a strong safety culture. By addressing the specific risks outlined in this guide, you can significantly reduce the likelihood of incidents while improving operational efficiency and protecting your most valuable assets.



Powder-Solutions Inc. (PSI) specializes in helping companies across industries implement safer powder handling practices. Our BFM® fitting systems address many of the core safety challenges discussed in this guide, from dust containment and static management to contamination prevention.



Ready to improve your powder handling safety? Contact our team today to learn more about how our solutions can help you create a safer, more efficient operation.
